IOS full digital solution for all-on-x with open production library

Open libraries. Digital precision. Multiple use. Game-changing technology.

(01.) Idea

Discover the revolution in the scanning process

See how an intraoral scanning using SmartFlag accurately reflects the situation in the patient's mouth.

(02.) Advantages

Advantages of the SmartFlag scanbody for multi-point cases

Independence

Open production libraries. Complete your cases in the chosen laboratory.

Precision of scanning

Provided by the geometry of the shape and marks.

Predictability

For the most complicated cases.

Passivity

High precision of cases based on intraoral scans.

Time-saving

Workflow completed in 2-3 visits.

Continuity of scanning

Smooth image registering with a standard intraoral scanner.

Standard components

Availability of APOLLO prosthetic components.

Durability

Up to 100 sterilization cycles.

Quality of materials

Medical peek eliminates reflections, and titanium alloy Grade 23 ELI ensures a tight connection with the implant.

Clear identification

of compatible implant systems and their platforms.

Advantages

1/10

(03.) Scanners and systems

Compatibility with Implant Systems
and Scanners

SmartFlag can be used
with several compatible
implant systems.
The compatibility chart
is regularly updated.

23 systems

Systems

1/4

Ankylos® Balance Base (4.2)

Astra Multibase EV™ 4.8

Astra Uni Abutment EV (3.7)

Astra Uni Abutment TX™ (3.4/20°)

Astra Uni Abutment TX™ (3.4/45°)

Alpha Universe Multi Unit™ (4.7)

Axiom® Multi-Level 4.0

Axiom® Multi-Level 4.8

Bredent® Multi-Unit 4.5

CAMLOG® Multi-Unit (4.3)

CWM® INNO Submerged Multi-Unit (4.5)

Dentium™ Multi-Unit (4.5)

ICX-MULTI® (4.8)

MegaGen AnyRidge® Multi-Unit (4.8)

MIS® Multi-Unit 4.8

Neobiotech IS™ Multi Unit (4.8)

Neodent® Multi-Unit (4.8)

Nobel® Multi-Unit (4.8)

Osstem® Multi-Unit 4.8

ROOTT® PCOMS (4.0)

ROOTT® PCOM (4.5)

Straumann® Multi-Unit (4.6)

Thommen SPI® VARIOmulti (4.8)

Cooperation with popular intraoral
scanners available on the market allows
SmartFlag to easily integrate with hardware,
that you have in your office.

12 scanners

Scanners

1/2

Cameo Elegant 3

DEXIS (Carestream) CS 3600

DEXIS (Carestream) CS 3700

DEXIS (Carestream) IS 3800

iTero Element

Medit i600

Medit i700

Primescan

Shining 3D Aoralscan

3Shape TRIOS 3

3Shape TRIOS 4

3Shape TRIOS 5

(04.) Types of cases

Types of cases in clinical
and laboratory protocol

New possibilities in the digital
protocol are available with Smartflags.
A wide range of implantoprosthehtic
cases, previously unavailable for intraoral
scanners, has now become a reality.

Case no. 1

Temporary restoration for immediate loading of implants.

Milled or printed

Required components (3)

Scanbody SmartFlag by APOLLO

Multi Titanium Base

Multi Titanium Base multiSHIFT36°

Libraries CAD/CAM

Case no. 2

Full-contour structure on multi-unit abutments using Multi Titanium Base.

Materials: PMMA/PEEK/ZrO₂

Required components (4)

Scanbody SmartFlag by APOLLO

Multi Titanium Base

Multi Titanium Base multiSHIFT36°

One Lock Digital Analog - in case of using printed model

Libraries CAD/CAM

Case no. 3

Full-contour structure from within multi-unit abutments on titanium bar.

Materials: PMMA/PEEK/ZrO₂

Required components (2)

Scanbody SmartFlag by APOLLO

One Lock Digital Analog - in case of using printed model

Libraries CAD/CAM

Case no. 4

Structure for veneering on multi-unit abutments with the usage of Multi Titanium Base/Multi Titanium Base multiSHIFT36°.

Materials: Ti/CoCr/PEEK/ZrO₂
Facing materials: acrylic/composite/ceramics

Required components (4)

Scanbody SmartFlag by APOLLO

Multi Titanium Base

Multi Titanium Base multiSHIFT36°

One Lock Digital Analog - in case of using printed model

Libraries CAD/CAM

Case no. 5

Structure for veneering from within multi-unit abutments on titanium bar.

Materials: Ti/CoCr/PEEK/ZrO₂
Facing materials: acrylic/composite/ceramics

Required components (2)

Scanbody SmartFlag by APOLLO

One Lock Digital Analog - in case of using printed model

Libraries CAD/CAM

Case no. 6

Retention bar for removable restoration on multi-unit abutments.

Materials: Ti

Required components (2)

Scanbody SmartFlag by APOLLO

One Lock Digital Analog - in case of using printed model

Libraries CAD/CAM

Case no. 7

Retention bar for removable restoration using Multi Titanium Base.

Materials: Ti/Zr

Required components (4)

Scanbody SmartFlag by APOLLO

Multi Titanium Base

Multi Titanium Base multiSHIFT36°

One Lock Digital Analog - in case of using printed model

Libraries CAD/CAM

(05.) Price

Choose SmartFlag –
choose the digital future
of implant prosthetics today!

Our offer is more than just a product -
it's knowledge, support, safety
and predictability of work.

What is included in our kit?

Scanbody SmartFlag - 8 pieces

Get guarantee of precise scans and fast work.

Open Production Libraries

Discover unlimited access and independence in choosing the milling centers and laboratories to work with.

Training with an Expert

Gain unique knowledge and skills during online training.

Online Support

Get access to the phone support provided by experts ready to answer your questions at any time and place.

Sterilization box

Ensure safety and hygiene during every use.

Set price

1 349 €

Submit order

Components

Components necessary
to complete the case

One Lock Digital Analog

Digital analog

38 €

Submit order

Multi Titanium
Base

Titanium base

49 €

Submit order

Multi Titanium Base multiSHIFT36°

Titanium base with angulated screw channel up to 36°

72 €

Submit order

multiSHIFT° Screwdriver

Screwdriver for angulated screw channel up to 36°

56 €

Submit order

Handle for screwdriver

Handle compatible with e.g. multiSHIFT36° screwdriver

56 €

Submit order

One Lock Digital Analog Screwdriver

Screwdriver for digital analog

21 €

Submit order

Components

1/5

In case of any questions,
feel free to contact us.

(06.) Opinions

SmartFlag in the eyes
of Key Opinion Leaders

Check why professionals
choose SmartFlag.

MD PhD Grzegorz Wasiluk

SmartFlag by APOLLO is a product that completely changed my approach to digital full-arch restorations, both fixed and removable. The use of these innovative scanbodies for all-on-x cases allows final work as well as immediate loading of implants to be done in a completely safe, predictable and passive way.

The use of SmartFlag made it easier for me and my doctors to work in a digital protocol on a daily basis, regardless of the extent of implant case. The ease of use and design of the product give positive feelings from the very beginning, and the perfect passivity of the works confirms it.

MD Paweł Szuba-Paszkiewicz

SmartFlag by APOLLO is the last missing link in the most complex full-arch implant cases.

Until now, precise intraoral scans in all-on-x cases were a challenge. SmartFlag enables precise procedure, eliminating the need to use analog solutions. The entire workflow using SmartFlag can be completed in 3 visits, which significantly speed up work time and improved predictability. The cases that were the most difficult for me, the ones that I was most stressed about, became the most enjoyable. I can recommend it to all prosthodontists and all those who work digitally.

Opinions

1/2

Opinions of implantoprosthetics
dentists

MD Zdzisław
Filkiewicz

Scanbody SmartFlag convinced me with its possibilities, thanks to which all-on-x cases became easier and faster to perform.

MD Tomasz
Sypień

A very promising product. It has the potential to change the approach to scanning patients for full-arch implant cases.

MD Natalia
Pochroń-Sawka

The most surprising thing is that full-arch implant cases, both fixed and removable, is characterized by perfect passivity. Thanks to SmartFlags, we are able to maintain a fully digital work protocol, including maintaining the height of occlusion and a stable orthopedic position of the jaw throughout the entire treatment process, which is why I definitely recommend this product.

MD Sławomir
Pastor

Very interesting solution. Scanbody is easy to use, aesthetic and solid. Comparision to photogrammetry was very promising.

Dental Technician
Marcin Chomko

SmartFlag was excellent choice for temporary restoration in fully digital protocol. It gives new possibilities for laboratories. Digital analogs positioned in a clear way, which was confirmed during clinical stage in dental office.

Marcin Chomko
Technik dentystyczny

Opinions

1/5

(07.) About Us

APOLLO IMPLANT COMPONENTS
with us, innovations become
the standard

Our company is a combination of passion, experience and advanced technology -
SmartFlag by APOLLO not only reflects knowledge, but also revolutionizes dental practice.

Working with renowned dentists and dental technicians, we create products, such as the scanbody SmartFlag, that not only reflect their knowledge and experience, but also bring effective solutions to everyday work.

Our modern machinery, optimal geometry of components and their highest quality make the APOLLO standard components line synonymous with reliability.

Temporary restoration for immediate loading of implants.

Milled or printed

01 / Dentist

Do the intraoral scans using Scanbody SmartFlag and send them to the laboratory.

02 / Technician

Download the library containing Scanbody SmartFlag and Multi Titanium Base. Make sure to use proper library for chosen length S/M/L while using Multi Titanium Base.

03 / Technician

Design the restoration using received scans and downloaded library.

04 / Technician

Send the design to the Dentist.

05 / Dentist

Print or mill the restoration based on the design received from the Technician.

06 / Dentist

Adjust Multi Titanium Base by cutting it to the proper length (S/M/L) adapted to the design and attach them to the restoration.

07 / Dentist

Screw the restoration into the patient’s mouth intraoperatively.

01 / Dentist

Do the intraoral scans using Scanbody SmartFlag and send them to the laboratory.

02 / Technician

Download the library containing Scanbody SmartFlag and Multi Titanium Base. Make sure to use proper library for chosen length S/M/L while using Multi Titanium Base.

03 / Technician

Print or mill the restoration based on the prepared design. Adjust Multi Titanium Base by cutting it to proper length (S/M/L) adapted to the design and attach them to the restoration.

04 / Technician

Hand over the final restoration to the Doctor.

05 / Dentist

Collect the case from the technician and screw it into the patient’s mouth intraoperatively.

Scanbody SmartFlag by APOLLO

Multi Titanium Base multiSHIFT36°

Full-contour structure on multi-unit abutments using Multi Titanium Base.

Materials: PMMA/PEEK/ZrO₂

Protocol

01 / Dentist

Do the intraoral scans using Scanbody SmartFlag and send them to the laboratory.

02 / Technician

Download the library containing Scanbody SmartFlag and Multi Titanium Base. Make sure to use proper library for chosen length S/M/L while using Multi Titanium Base.

03 / Technician

Mill the structure by yourself or in a milling centre recommended by APOLLO (try-in is recommended before the final restoration).

04 / Technician

Adjust Multi Titanium Base by cutting it to proper length (S/M/L) adapted to the design.

05 / Technician

Complete the prosthetic work on the structure according to the dentist’s order.

06 / Technician

Attach the adjusted Multi Titanium Base to the restoration and hand it over to the dentist.

07 / Dentist

Collect the restoration from the technician and screw it into the patient’s mouth.

Scanbody SmartFlag by APOLLO

Multi Titanium Base multiSHIFT36°

One Lock Digital Analog - in case of using printed model

Full-contour structure from within multi-unit abutments on titanium bar.

Materials: PMMA/PEEK/ZrO₂

Protocol

01 / Dentist

Do the intraoral scans using Scanbody SmartFlag and send them to the laboratory.

02 / Technician

Download the library for Scanbody SmartFlag by APOLLO and design the case using received scans.

03 / Technician

Design the structure: titanium and full-contour part at the same time (try in is recommended before final restoration).

04 / Technician

Mill the structure by yourself or in a milling centre recommended by APOLLO.

05 / Technician

Complete the prosthetic work on the structure according to the dentist’s order and hand it over to the doctor’s office.

06 / Dentist

Collect the restoration from the technician and screw it into the patient's mouth.

Scanbody SmartFlag by APOLLO

One Lock Digital Analog - in case of using printed model

Structure for veneering on multi-unit abutments with the usage of Multi Titanium Base/Multi Titanium Base multiSHIFT36°.

Materials: Ti/CoCr/PEEK/ZrO₂
Facing materials: acrylic/composite/ceramics

Protocol

01 / Dentist

Do the intraoral scans using Scanbody SmartFlag and send them to the laboratory.

02 / Technician

Download the library containing Scanbody SmartFlag, Multi Titanium Base / Multi Titanium Base MultiShift 36 and One Lock Digital Analog. Make sure to use proper library for chosen length S/M/L while using Multi Titanium Base.

03 / Technician

Design the structure using received scans and downloaded library.

04 / Technician

Mill the structure by yourself or in a milling centre recommended by APOLLO (try-in is recommended before the final work).

05 / Technician

Adjust Multi Titanium Base by cutting it to proper length (S/M/L) adapted to the design.

06 / Technician

Design a digital model using library for One Lock Digital Analog and print it.

06 / A

Place the One Lock Digital Analog in the model using a dedicated tightening screwdriver.

07 / Technician

Complete the prosthetic work on the structure according to the dentist’s order.

08 / Technician

Attach the adjusted Multi Titanium Base to the restoration and hand it over to the dentist.

09 / Dentist

Collect the restoration from the technician and screw it into the patient’s mouth.

Scanbody SmartFlag by APOLLO

Multi Titanium Base multiSHIFT36°

One Lock Digital Analog - in case of using printed model

Structure for veneering from within multi-unit abutments on titanium bar.

Materials: Ti/CoCr/PEEK/ZrO₂
Facing materials: acrylic/composite/ceramics

Protocol

01 / Dentist

Do the intraoral scans using Scanbody SmartFlag and send them to the laboratory.

02 / Technician

Download the library containing Scanbody SmartFlag and One Lock Digital Analog.

03 / Technician

Design the case using received scans and downloaded library.

04 / Technician

Mill the structure by yourself or in a milling centre recommended by APOLLO ( try-in is recommended before final restoration).

05 / Technician

Design a digital model using One Lock Digital Analog library and print it.

05 / A

Place the One Lock Digital Analog in the model using a dedicated tightening screwdriver.

06 / Technician

Complete the prosthetic work on the structure according to the dentist’s order and hand it over to the doctor’s office.

07 / Dentist

Collect the final restoration from the technician and screw it into the patient's mouth.

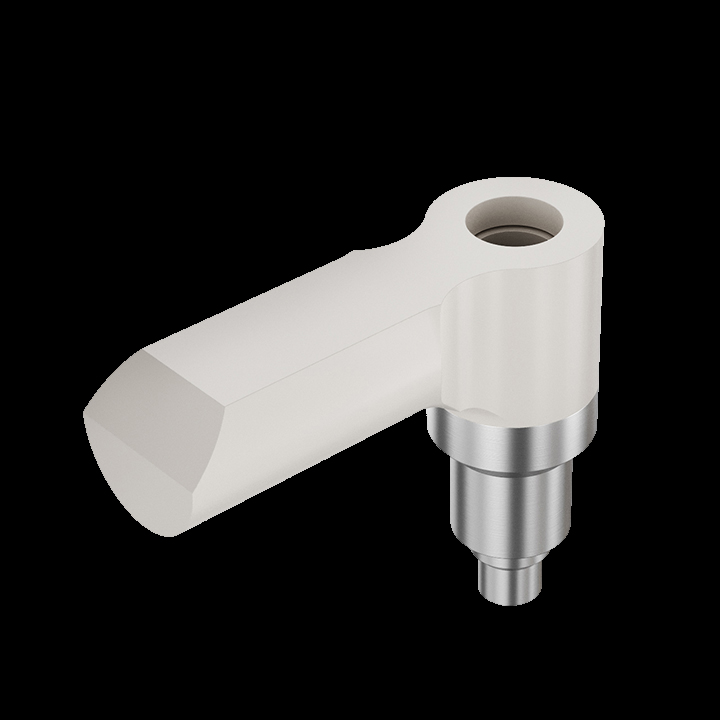

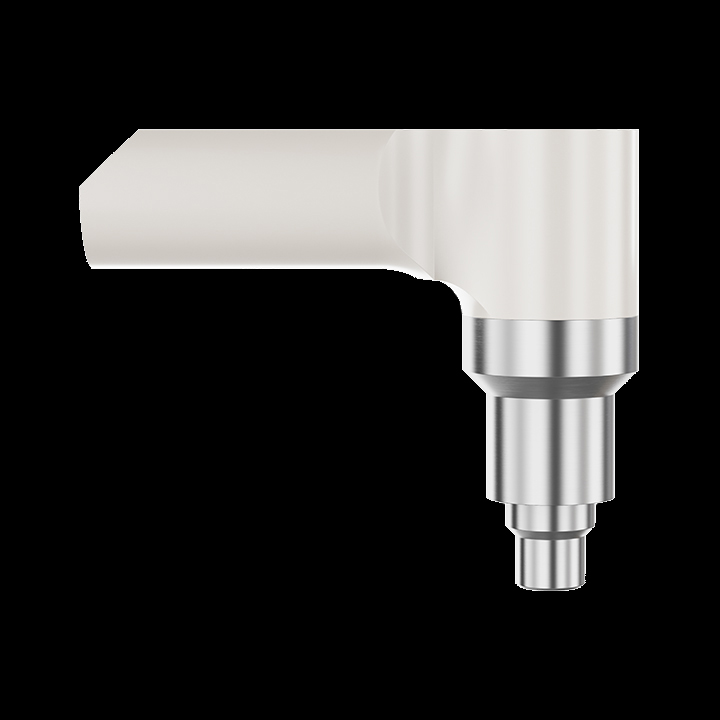

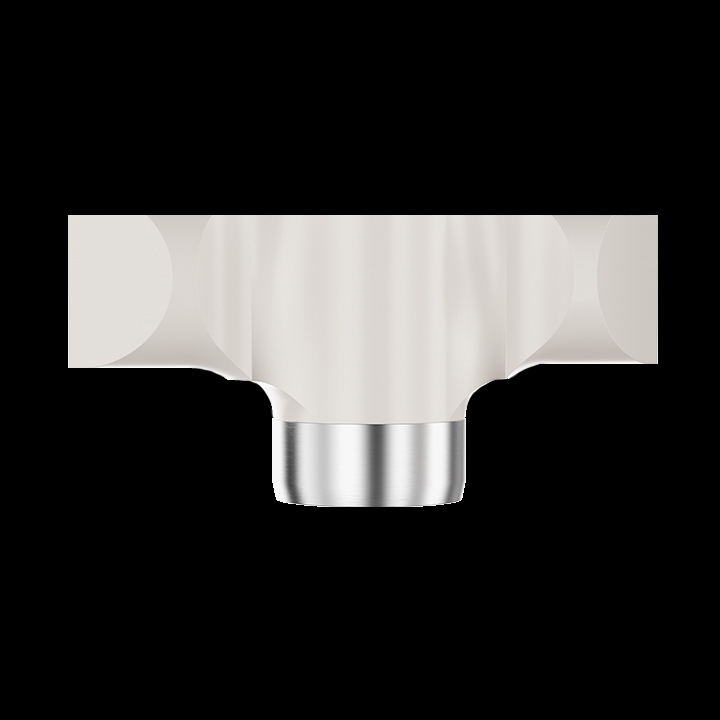

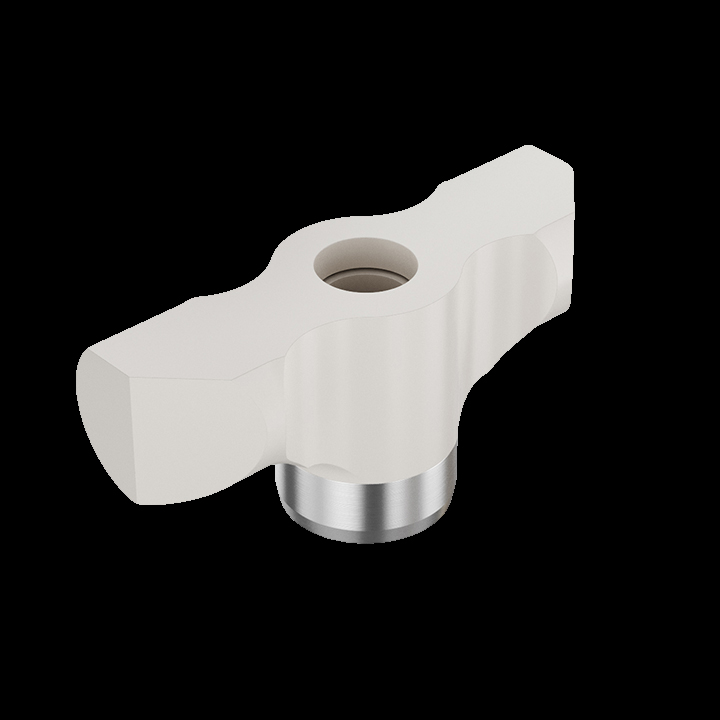

Scanbody SmartFlag by APOLLO

One Lock Digital Analog - in case of using printed model

Retention bar for removable restoration on multi-unit abutments.

Materials: Ti

Protocol

01 / Dentist

Do the intraoral scans using Scanbody SmartFlag and send them to the laboratory.

02 / Technician

Download library for Scanbody SmartFlag by APOLLO and use it to design the bar (try in is recommended before final restoration).

03 / Technician

Mill the bar by yourself or in the milling centre recommended by APOLLO, and deliver the bar to the doctor’s office.

04 / Dentist

Collect the bar from the technician and screw it into the patient's mouth.

05 / Dentist

Complete the protocol in digital or analog way.

Scanbody SmartFlag by APOLLO

One Lock Digital Analog - in case of using printed model

Retention bar for removable restoration using Multi Titanium Base.

Materials: Ti/Zr

Protocol

01 / Dentist

Do the intraoral scans using Scanbody SmartFlag and send them to the laboratory.

02 / Technician

Download library for Scanbody SmartFlag by APOLLO and Multi Titanium Base / Multi Titanium Base Multishift 36°. Make sure to use proper library for chosen length S/M/L while using Multi Titanium Base.

03 / Technician

Design the bar based on received scans and downloaded library (try-in is recommended before final restoration).

04 / Technician

Mill the bar by yourself or in a milling center recommended by APOLLO.

05 / Technician

Adjust Multi Titanium Base by cutting it to proper length (S/M/L) adapted to the design and attach it to the bar.

06 / Technician

Hand over the bar to the dentist.

07 / Dentist

Collect the bar from the technician and screw it into the patient's mouth.

08 / Dentist

Complete the protocol in digital or analog way.

Scanbody SmartFlag by APOLLO

Multi Titanium Base multiSHIFT36°

One Lock Digital Analog - in case of using printed model

IOS full digital solution for all-on-x with open production library

Discover the revolution in the scanning process

Advantages of the SmartFlag scanbody for multi-point cases

Independence

Precision of scanning

Predictability

Passivity

Time-saving

Continuity of scanning

Standard components

Durability

Quality of materials

Clear identification

Compatibility with Implant Systems and Scanners

Types of cases in clinical and laboratory protocol

Choose SmartFlag – choose the digital future of implant prosthetics today!

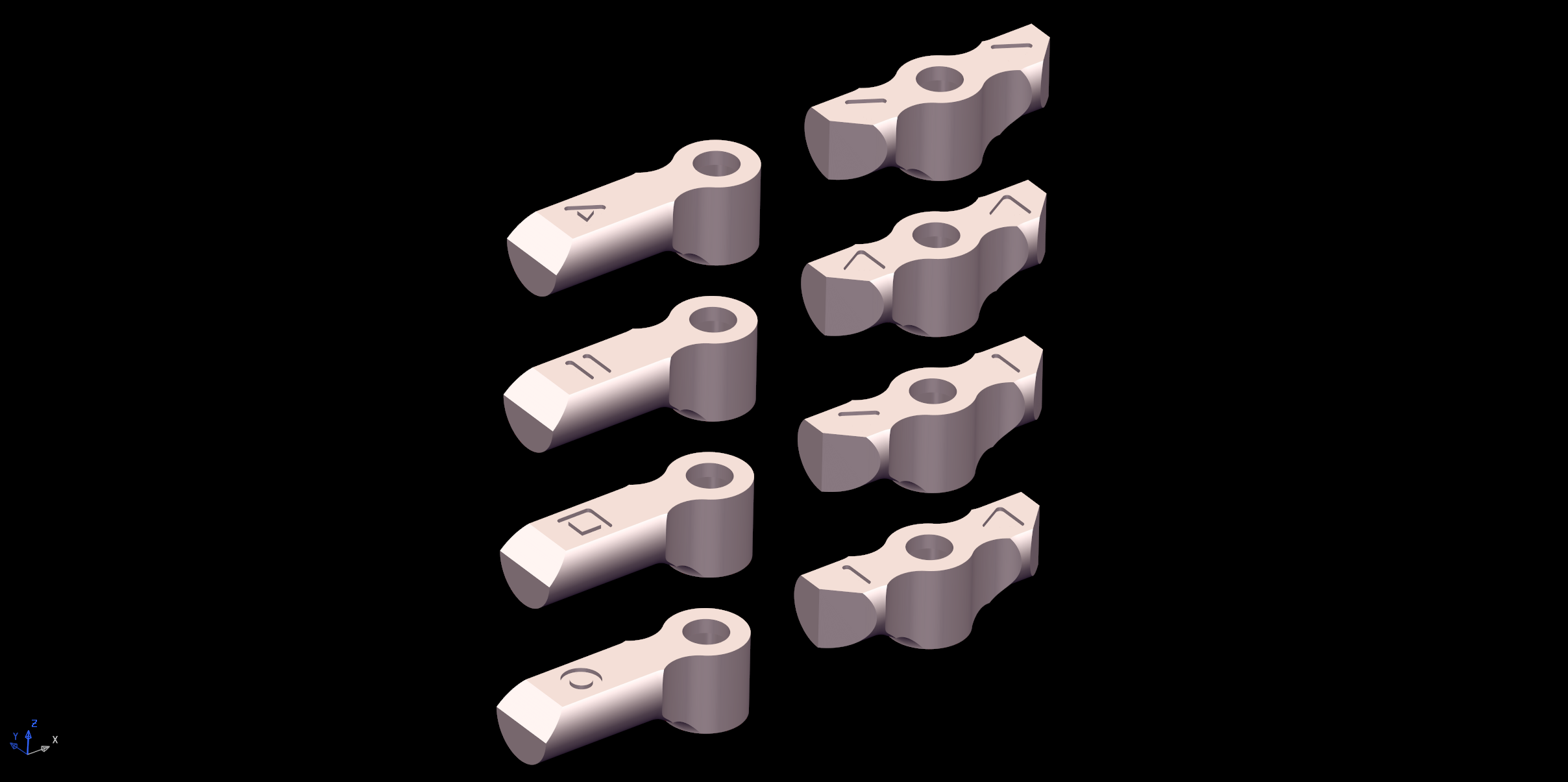

Scanbody SmartFlag - 8 pieces

Open Production Libraries

Training with an Expert

Online Support

Sterilization box

1 349 €

Components necessary to complete the case

One Lock Digital Analog

Multi Titanium Base

Multi Titanium Base multiSHIFT36°

multiSHIFT° Screwdriver

Handle for screwdriver

One Lock Digital Analog Screwdriver

In case of any questions, feel free to contact us.

SmartFlag in the eyes of Key Opinion Leaders

MD PhD Grzegorz Wasiluk

MD Paweł Szuba-Paszkiewicz

Opinions of implantoprosthetics dentists

APOLLO IMPLANT COMPONENTS with us, innovations become the standard

Temporary restoration for immediate loading of implants.

Milled or printed

Full-contour structure on multi-unit abutments using Multi Titanium Base.

Materials: PMMA/PEEK/ZrO₂

Full-contour structure from within multi-unit abutments on titanium bar.

Materials: PMMA/PEEK/ZrO₂

Structure for veneering on multi-unit abutments with the usage of Multi Titanium Base/Multi Titanium Base multiSHIFT36°.

Materials: Ti/CoCr/PEEK/ZrO₂ Facing materials: acrylic/composite/ceramics

Structure for veneering from within multi-unit abutments on titanium bar.

Materials: Ti/CoCr/PEEK/ZrO₂ Facing materials: acrylic/composite/ceramics

Retention bar for removable restoration on multi-unit abutments.

Materials: Ti

Retention bar for removable restoration using Multi Titanium Base.

Materials: Ti/Zr

Compatibility with Implant Systems
and Scanners

Types of cases in clinical
and laboratory protocol

Choose SmartFlag –
choose the digital future
of implant prosthetics today!

Components necessary
to complete the case

Multi Titanium
Base

In case of any questions,
feel free to contact us.

SmartFlag in the eyes
of Key Opinion Leaders

Opinions of implantoprosthetics
dentists

APOLLO IMPLANT COMPONENTS
with us, innovations become
the standard

Materials: Ti/CoCr/PEEK/ZrO₂
Facing materials: acrylic/composite/ceramics

Materials: Ti/CoCr/PEEK/ZrO₂
Facing materials: acrylic/composite/ceramics
